Getting yourself familiar with real-world cockpit layouts is the game-changer when you’re thinking of building your own custom cockpit. It’s like getting the blueprint before you even start. You don’t just want something that looks cool—you want it to feel right, like the actual thing.
Digging into different aircraft models can get a bit addictive, but hey, it’s all in good fun. From regional airliners to iconic fighter jets, each layout gives you tips and tricks to incorporate into your design. If you’re new to flight simming, check out our Getting Started With Flight Simulation. Some folks swear by the sleek, minimal look of modern jets, while others love the busy charm of older cockpits packed with gauges and dials.
Think about the kind of flying you enjoy most—are you cruising through civilian airspace or engaging in fast-paced military ops? That’ll help you decide what really needs to be on your panel. A cargo pilot doesn’t need missile switches, and a fighter jet sim fan probably won’t get much use out of a basic autopilot button setup.
Getting some solid research tools in your toolkit is smart too. There are a bunch of flight sim communities like Avsim, YouTube channels, and even some books that break down cockpit designs into bite-sized chunks anybody can handle. This isn’t just about copying, though. It’s about learning the language of cockpit design and figuring out what works for you.
Consider everything from ergonomics—like reach and comfort—to the visual flow of your panel. A layout that lets you operate naturally means a more immersive experience. Also see our tips in How To Set Up Your First Custom Flight Simulator for more on layout and space management. Trust me, investing time here saves loads of hassle down the line.
Choosing the Perfect Build: Analog vs. Digital Panels
Figuring out whether you want an analog or digital cockpit panel can really set the tone for your whole project. It’s about what gets you excited when you’re in the pilot’s seat, seeing those dials spin or having digital readouts glow back at you.

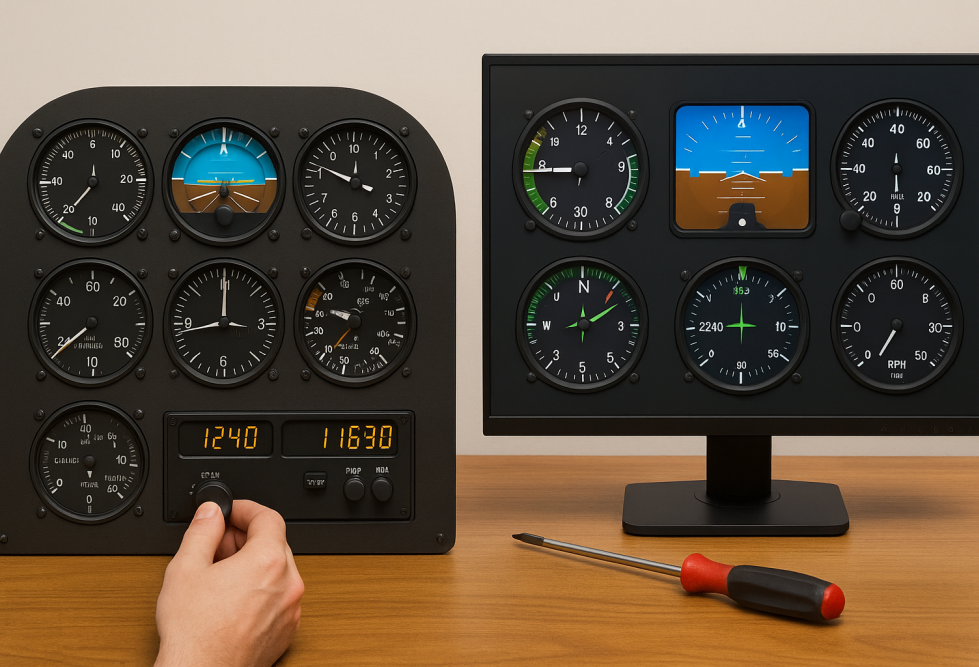

Analog panels bring that old-school charm and a tactile feel that’s hard to beat. They might take you back to the golden age of flying, with each gauge telling its own little story. It’s perfect for anyone who gets a kick out of the mechanical aspects of flight. Plus, they’re often easier on the eyes and can be more intuitive if you’ve got a lot going on.
On the flip side, digital panels are for those who love precision. They’re sleek, efficient, and can cram a lot of info into a small space. Perfect if you’re into high-tech, futuristic cockpits or have limited space to work with. You get to enjoy customizable screens and multifunction displays that can change with a few clicks—a modern pilot’s dream.
For some folks, mixing analog and digital elements can strike just the right balance. You could go classic with your key gauges while using digital displays for extra info. This hybrid approach can give you the best of both worlds, which is awesome if you’re into flying a variety of aircraft types.
Let’s not forget about your budget and skills. Analog might be less demanding on the tech side but could take more time to calibrate. Digital takes some tech savvy, but assembling or reconfiguring is often a breeze once you get the hang of it.
Thinking about future upgrades is wise too. With digital, updates can be as simple as new software or display units without much physical rework. You might also enjoy our post on Essential Hardware Upgrades For Enhanced Sim Experiences. Analog might need a bit more planning, but tinkering and adding new gauges can be a lot of fun if that’s your thing.
Consider what resonates most with how you’d like to interact with your cockpit. Whether you prefer the mechanical charm of analog or the techy vibe of digital, your choice shapes the heart of your build.
Materials Matter: Selecting the Right Building Components
Picking the right materials for your cockpit build is kind of like choosing the right ingredients for a recipe. You need the perfect balance to make sure your project stands up, looks great, and doesn’t break the bank.

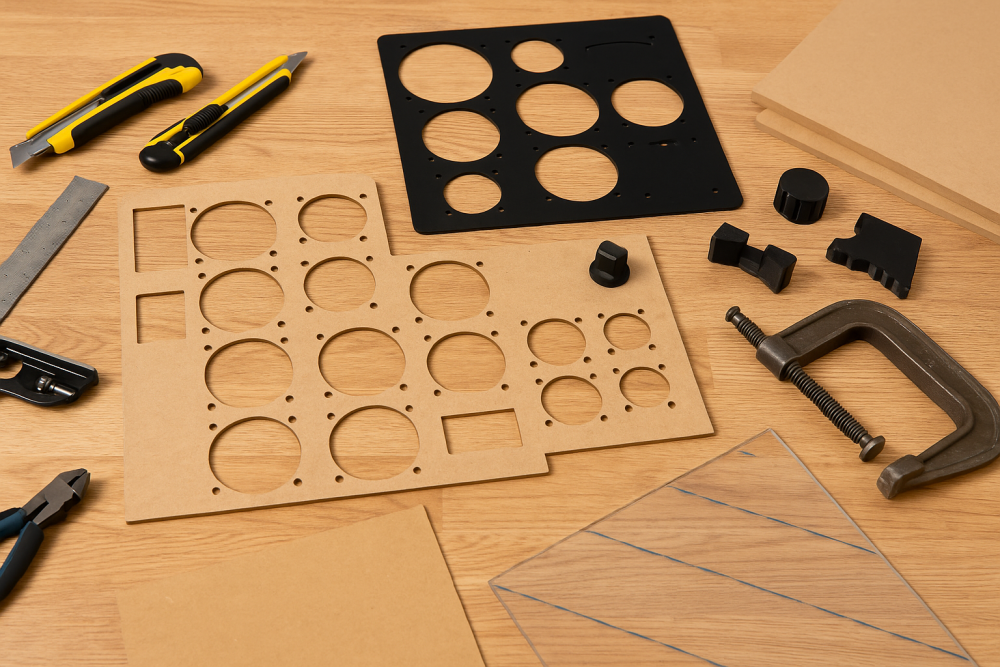

MDF (medium-density fiberboard) is a popular choice in the DIY scene. It’s pretty budget-friendly and easy to cut, making it great for folks who are just getting started. Just a heads-up, it can be a bit heavy, so consider how you plan to support your cockpit structure.
For those looking for something a bit more stylish, acrylic is a strong contender. It offers that sleek, professional look and can be laser-cut for precision. It scratches easily, though, so be prepared to handle it with care.
3D printing can be a game-changer if you’re into custom designs. You get to create intricate components that’d be tough to craft by hand. It’s especially useful for smaller bits like knobs and housings, letting you experiment with different builds without major cost hikes.
As you’re picking materials, aim for that sweet spot between strong, lightweight, and affordable. Going super cheap might seem smart at first, but it could come back to bite you later with weak joints or wear-and-tear. Sometimes spending a bit more upfront actually means fewer frustrations down the line.
It’s good to keep environmental impact in mind too. Opt for sustainable materials and recycling options whenever you can—there are some pretty amazing eco-friendly solutions available if you dig around a bit.
The tools you use can really make or break the build. A clean cut with a sharp blade and a steady clamp setup can save you hours of sanding or re-measuring. Whether it’s MDF or acrylic, accuracy is key—and the right tools make the whole process smoother (and way less stressful).
So there you have it. Whatever you choose, make sure it suits not only your design but also your skill set and budget. That’s how you build something that you’ll be proud of and excited to use every time.
Design and Integration: Crafting Panels to Match Your Setup

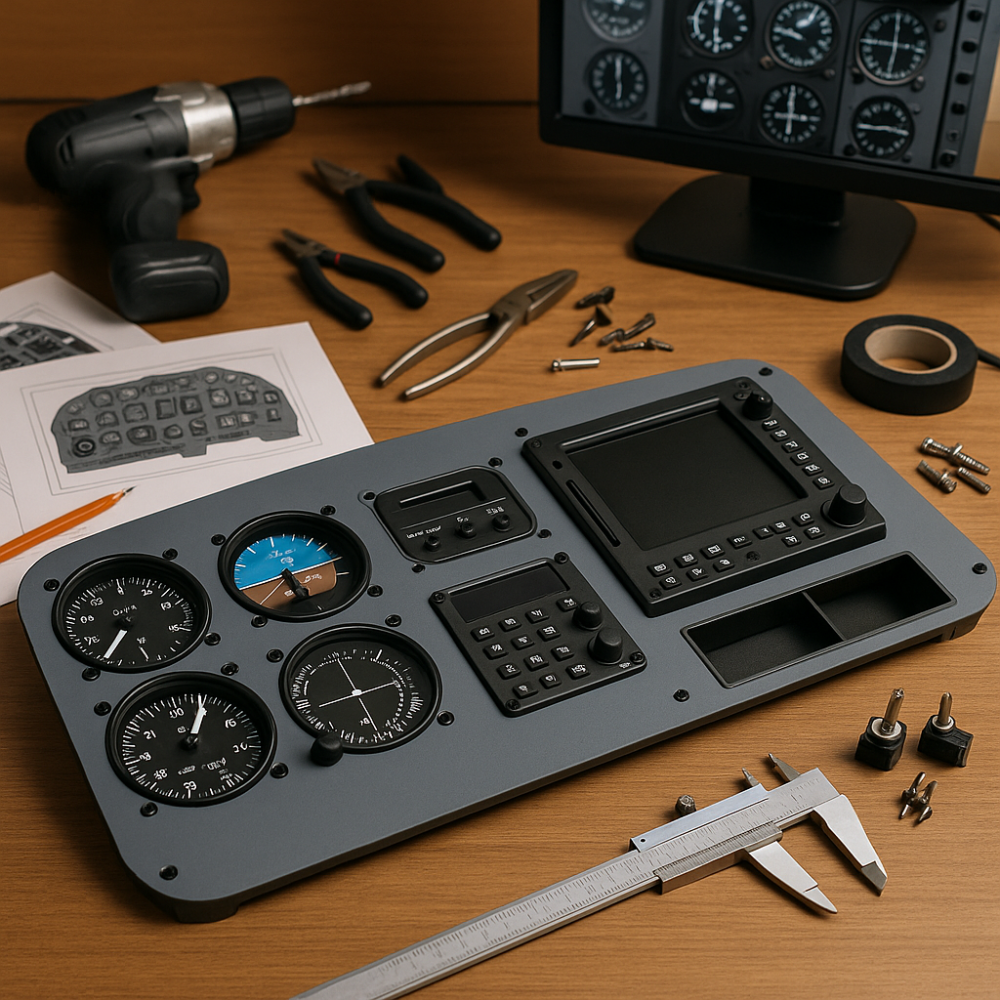

When it comes to your cockpit, having panels that fit just right with your existing setup is key. Proper measuring and customization ensure everything feels seamless and within reach when you’re in the pilot’s seat.
Before you start cutting, get out the tape measure and note all your dimensions. Check the height, width, and depth of your space—and think about things like desk height or monitor position. If you’re planning a full home setup, our article on Building A DIY Home Cockpit On A Budget. The last thing you want is to build something perfect that doesn’t fit where you need it.

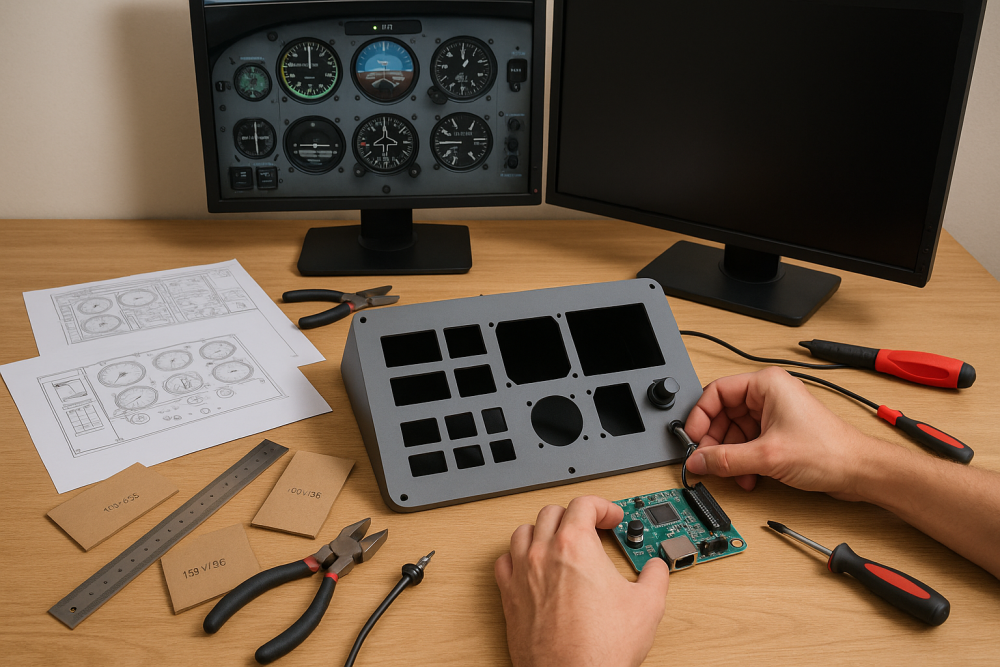

Here’s where USB interface boards like Leo Bodnar BU0836X come into play. They’re brilliant for connecting all those switches and encoders. With these bad boys, you can link your hardware to the sim software really efficiently. Plus, you can usually handle a ton of inputs, which means more functionality at your fingertips.
A modular design is genius if you’re planning future tweaks or upgrades. By crafting your panels in segments, you ensure that moving things around or shaving down for most upgrades doesn’t become a massive project. It’s like having a cockpit that grows with your interests and tech advances.
For software, get familiar with tools like SPAD.neXt or Air Manager. These programs will be a lifesaver when it’s time to map out all your buttons and switches in the simulator. They offer flexibility and control, letting you tweak settings and configurations to suit your style of flying.
With the right planning and integration approach, your custom panels will enhance your overall sim experience. Not only do you end up with a setup that looks amazing, but it also performs flawlessly when you’re ready to take to the (virtual) skies.
Enhancements and Community: Adding the Final Touch
It’s those finishing touches that really make your custom cockpit panel stand out. Backlighting, for instance, can significantly elevate the realism and usability of your setup, especially during late-night flights. LED strips are pretty versatile, and you can control them to get the perfect levels of lighting for your needs.
When it comes to labeling, think about clarity and aesthetics. You can use printable sticker paper or even engraving techniques to create professional-looking labels that match your design style. It’s the little details like these that pull everything together.
Cable management might not sound exciting, but trust me—it’s a game changer. Using Velcro ties, clips, and trays keeps your setup clean and hassle-free. Plus, when it’s time to swap out a switch or troubleshoot a glitch, you’ll thank yourself for not having to untangle a jungle of wires.
Engaging with the DIY cockpit-building community can be both inspiring and immensely helpful. Online forums, Facebook groups, and Reddit r/hotas communities are buzzing with people sharing their projects, tips, and solutions. If you hit a snag or just want feedback on your ideas, these places are gold.
Taking part actively helps build your skills and keeps you motivated. You might even find someone who’s tackled similar challenges or has insights that save you time and effort.
Sharing your journey—not just your successes but the challenges too—can be rewarding. You’ll connect with other enthusiasts and might even inspire someone else to start their project.
In the end, the combination of thoughtful enhancements and community support ensures your custom cockpit is not just functional but a reflection of your personal style and passion for aviation.
🧰 Wrapping It Up: Your Cockpit, Your Way
Building your own custom cockpit panel is one of the most rewarding ways to level up your flight sim setup. Whether you’re leaning toward analog gauges, sleek digital displays, or a hybrid of both, it all comes down to crafting something that feels right for your flying style. With the right materials, thoughtful layout, and a few smart tools, you can create a cockpit that’s not only functional—but genuinely fun to use.
And don’t forget, you’re not alone in this journey. There’s a whole world of sim enthusiasts out there sharing ideas, fixes, and inspiration.
💬 Ready to start your own custom cockpit build?
Drop your questions or progress photos in the comments—or share your setup with us on the Flight Sim Essentials Facebook page. And if you haven’t yet, be sure to check out our DIY Home Cockpit Guide for more hands-on tips!
✈️ Happy building, and see you in the virtual skies!
